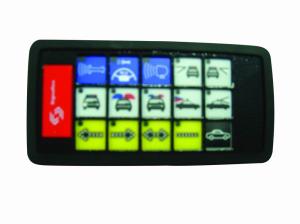

Backlit Led Membrane Switch Panel

  • 1
  • 2
  • 3

Place of Origin : China

Brand Name : DOPO

Certification : CE,FCC,ROHS

Model Number : DPT-MS-08

MOQ : 1000pcs

Packaging Details : Standard export package

Delivery Time : 7-15 working days

Payment Terms : T/T,westen union

Supply Ability : 20Kpcs/day

Glue : 3M or common

Material : Polyester or Polycarbonate

Application : Industrial device, home appliance

Keypad Button Material : PVC, PC,PET, Sandwich,circuit

Classification : Tactile & Non-Tactile

Operating voltage : 35V DC

Operating current : 100mA 1W

Tactile ratio : FC > 40%

Contact Now

Backlit Led Membrane Switch Panel For Home And Industrial Device

Key Details
Place of Original: ShenZhen China
Application:Industrial device, home appliance
Keypad Button Material: PVC, PC,PET, Sandwich,circuit
color:all color
Material:Polyester or Polycarbonate
glue:3M or common
Artwork Format: CorelDraw, Adobe Illustrator AI or EPS, AutoCAD Dwg or DXF

Packaging & Delivery
Packaging Detail: Customer' designes are welcome
Delivery Detail: 7-10 working days after comformation


Specifications

  1. membrane key switch
  2. 100% testing
  3. High quality siliver ink
  4. Printing Circuit
  5. Screen printing
  6. Waterproof
  7. LED backlight(if need)


Membrane keypad with FPC circuit

membrane switch label
Material: Polyester or Polycarbonate
Artwork Format: CorelDraw, Adobe Illustrator AI or EPS, AutoCAD Dwg or DXF
Tactile Feel: Is determined by the thickness of the overlayer. Normally between 0.06” -0.08".
Color Verification: Pantone Matching System;The Munsell Color System;Color Samples
Conductive Trace: Silver or Copper
Shielding: EMI/ESD/RFI can be employed.
Dome:Stainless Steel or Mylar
Actuation Force: Depend on customer's requirement. Normally between 30-600 grams.
Travel: Depend on customer's requirement. Normally between 0.010" - 0.020".
Life Cycle: 5 Million Cycles(up to)

Strength:

  1. Pressing life-span is over ten hundred thousand times.
  2. Have the characteristics of the function stabilizes.
  3. Handle reliably and good tactility feeling.
  4. Customised design

Technology

Operating voltage: 35V DC
Operating current: 100mA 1W
Contact resistance: < 100 Ohms
Open circuit resistance: ≥ 10MΩ at 100V
Operating temperature: Flat/Metal dome:-20°c to +80°c
Storage temperature: Flat/Metal dome:-40°cto +80°c
Life expectancy Flat type≥5,000,000 times Tactile type≥1,000,000 times
Switch stroke: 0.1 to 0.6mm
Contact bounce: 5 to 30ms
Actuation force tolerance: +/- 20 to 45g
Tactile ratio: FC > 40%
Operating humidity: up to 95% RH
Female, male connector, solder pins and heat seal connectors are available
Packaging & Delivery
Packaging: PE bag, Carton, Wooden case
Delivery Detail: two weeks after order confirmation

Backlit Led Membrane Switch Panel

Backlit Led Membrane Switch Panel
